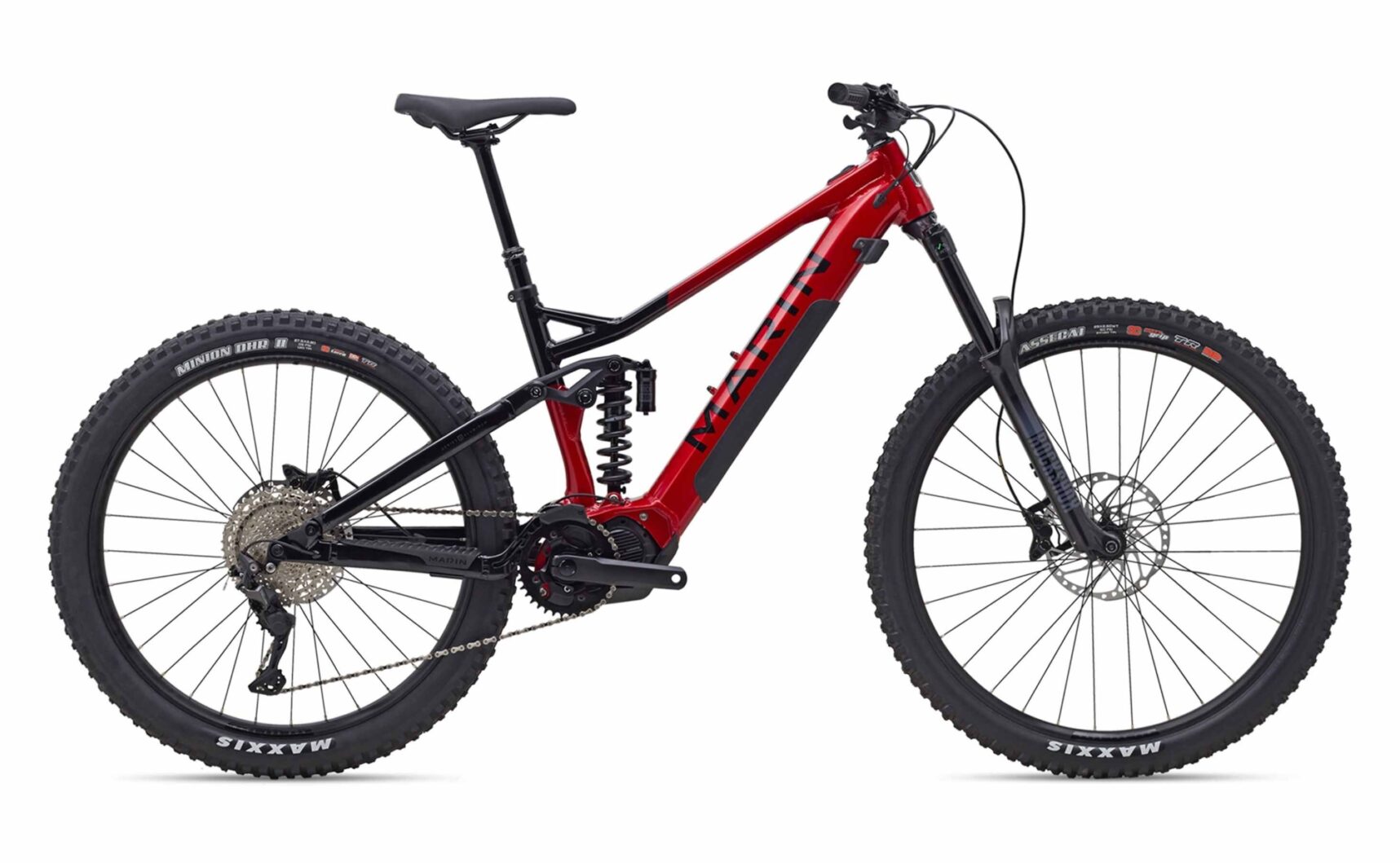

Bicicleta Eléctrica Marin Alpine Trail E1 2022

1. Especificaciones

• FRAME

  All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  Rock Shock 35 Gold RL 29″, Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset

• SHOCK

  Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

• RIMS

  Front: Marin Aluminum Double Wall, 29″ Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5″ Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano HB-MT400B, 148x12mm, Centerlock,
  Standard Freehub Body

• HUB FRONT

  Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Front: Maxxis Assegai 29×2.5″, 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5×2.8, 3C Maxx Terra, EXO+, Tubeless Compatible

• DERAILLEUR REAR

  Shimano Deore 5100 Direct Attachment,
  10-Speed

• DERAILLEUR FRONT

  –

• SHIFT LEVER

  Shimano Deore M4100-R, I-Spec EV, 10-Speed

• CRANKSET

  Marin Forged Alloy 165mm Length, Narrow
  Wide 38T Chainring, e13 Plus Chain guide,
  Aluminum Plate

• MOTOR

  Shimano STEPS E7000, 250W, 60Nm

• CHAIN

  KMC X-10E, E-Bike Specific, Silver

• CASSETTE

  Shimano Deore M4100-10 10-speed 11-46T

• BRAKES FRONT

  Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

• BRAKES REAR

  Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor

• BRAKE LEVERS

  Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Single Clamp Locking

• HEADSET

  FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

• SEATPOST

  TranzX, YSP23JL, 1x Remote, Size S 125mm
  Travel, Size M and L 150mm Travel, Size XL
  170mm Travel, 30.9mm

• SADDLE

  Marin E-MTB Saddle

• PEDALS

  Marin MTB Plastic

• BATTERY

  BT-8035, Internal 504Wh

• DISPLAY

  SC-E7000 Display

• SWITCH

  SW-E7000 Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle

Specifications, pricing, and availability are subject to change without notice.
